GENERAL
Nombre | Zenmuse Z30 |
---|---|
Dimensiones | 152×137×61 mm |
Peso | 549 g |
CAMERA
Sensor | CMOS, 1/2.8″
Effective Pixels: 2.13 M |
---|---|
Lens | 30x Optical Zoom
F1.6 (Wide) – F4.7 (Tele) Zoom Movement Speed: – Optical Wide – Optical Tele: 4.6 sec – Optical Wide – Digital Tele: 6.2 sec – Digital Wide – Digital Tele : 1.8 sec Focus Movement Time: ∞ – near: 1.1 sec |
FOV | 63.7°(Wide) – 2.3°(Tele) |
Digital Zoom | 6x |
Min. Working Distance | 10 mm (Wide) – 1200 mm (Tele) |
Photo Formats | JPEG |
Video Formats | MOV, MP4 |
Working Modes | Capture, Record, Playback |
Still Photography Modes | Single shot, Burst shooting: 3/5 frames, Timelapse (2/3/4/7/10/15/20/30 sec) |
Exposure Mode | Auto, Manual, Shutter |
Exposure Compensation | ±3.0 (1/3 increments) |
Metering Mode | Center-weighted metering, Spot metering (Area option 12×8) |
AE Lock | Supported |
Electronic Shutter Speed | 1/1 – 1/6000 s |
White Balance | Auto, Sunny, Cloudy, Incandescent, Custom (2000K – 10000K) |
Video Captions | Supported |
Tap to Zoom | Supported |
Tap to Zoom Range | Supported |
Tap to Zoom Range | 1-5 |
Defog | Supported |
One Key to 1x Image | Supported |
Anti-flicker | Auto, 50 Hz, 60 Hz |
PAL/NTSC | Supported |
Supported SD Cards | MicroSD (SD / SDHC / SDXC)
Max. Capacity: 64 GB, Class 10 or UHS-1 |
Supported File Systems | FAT32 (≤ 32 GB)
exFAT (> 32 GB) |

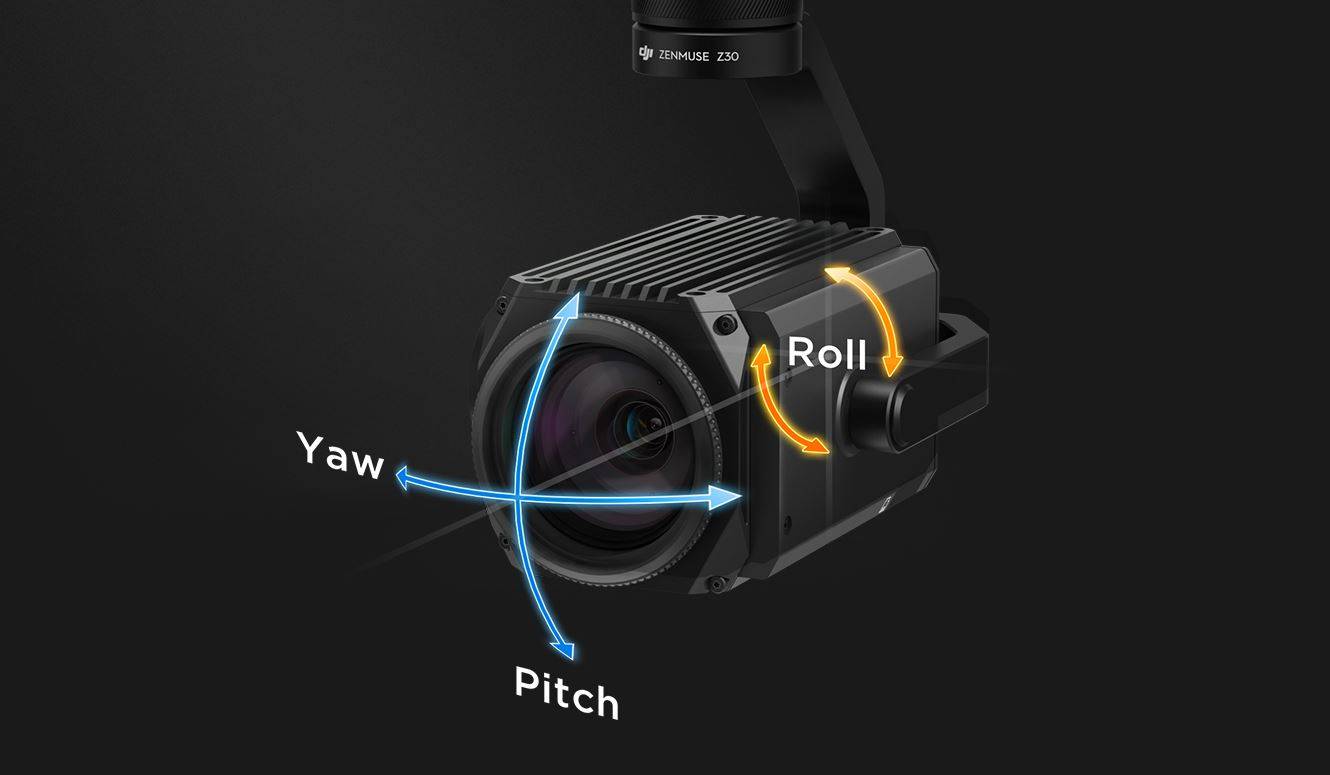

GIMBAL
Angular Vibration Range | ±0.01° |
---|---|
Mount | Detachable |
Controllable Range | Tilt: +30° to -90°, Pan: ±320° |
Mechanical Range | Tilt: +50° to -140°, Pan: ±330°, Roll: +90° to -50° |
Max Controllable Speed | Tilt: 120°/s, Pan: 180°/s |
ENVIRONMENTAL
Operating Temperature | 14° to 113° F (-10° to 45° C) |
---|---|
Non-Operating Temperature | -4° to 140° F (-20° to 60° C) |
