Zenmuse Z30

30x Zoom Camera for DJI Matrice Series

Available in stock. If you would like more information please contact us via email uav@atyges.es

Request a quote

Aerial platforms are rapidly becoming vital tools for companies looking for greater efficiency in gathering information crucial to their operations. As the first aerial camera with an optical zoom of up to 30x and digital zoom up to 6x integrated, the Zenmuse Z30 offers unprecedented image data collection. Companies will be able to collect the information they need from a wider scope, making data collection considerably faster and without riskto staff or equipment.

Designed to integrate seamlessly with the DJI Matrice series of fuselages, the Zenmuse Z30 is ready as soon as you open the box and gives you the smart features that have made DJI so familiar.

Zoom

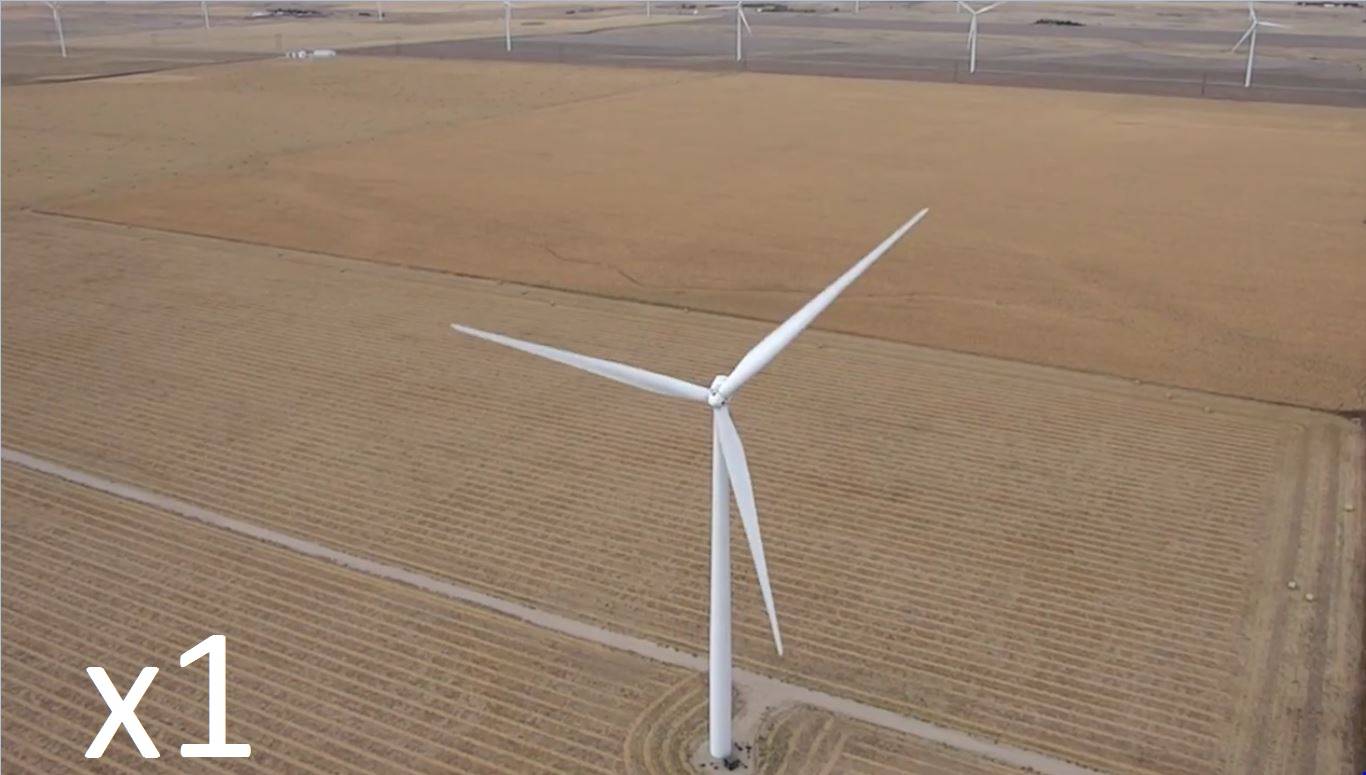

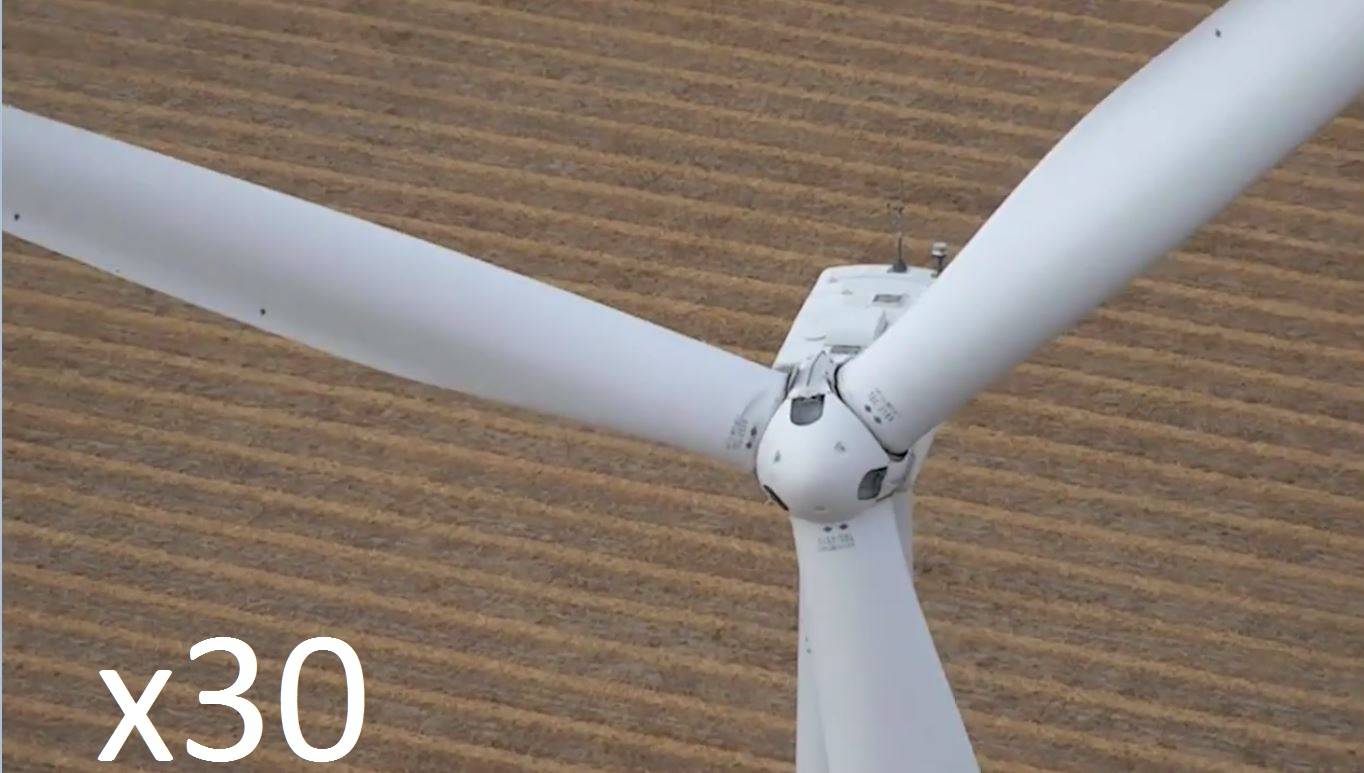

The Zenmuse Z30 is the most powerful integrated zoom aerial camera on the market with a 30x optical zoom and a 6x digital zoom for a total magnification of 180x. Whether inspecting telecommunications towers or wind turbines, it allows you to observe structures, cables, modules and components in detail for damage or damage.

Because you’ll be able to carry out longer-distance inspections without flying too close, you’ll not only gain in efficiency and time but also reduce the risk of collision.

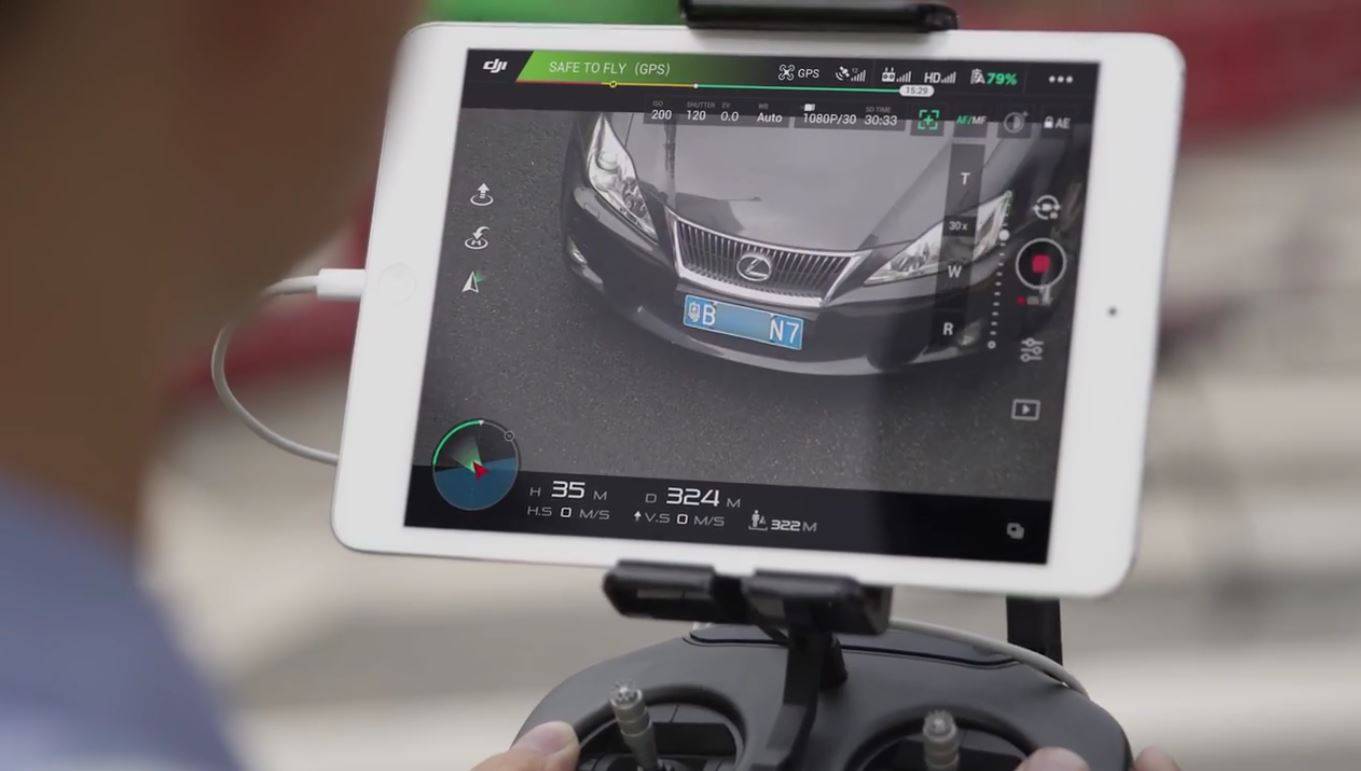

TapZoom

With TapZoom, collecting detailed visual information is as simple as giving a few taps on the screen whatever you want to inspect. The Zenmuse Z30 automatically adjusts the focal length for an enlarged view, making even the smallest detail visible in seconds.

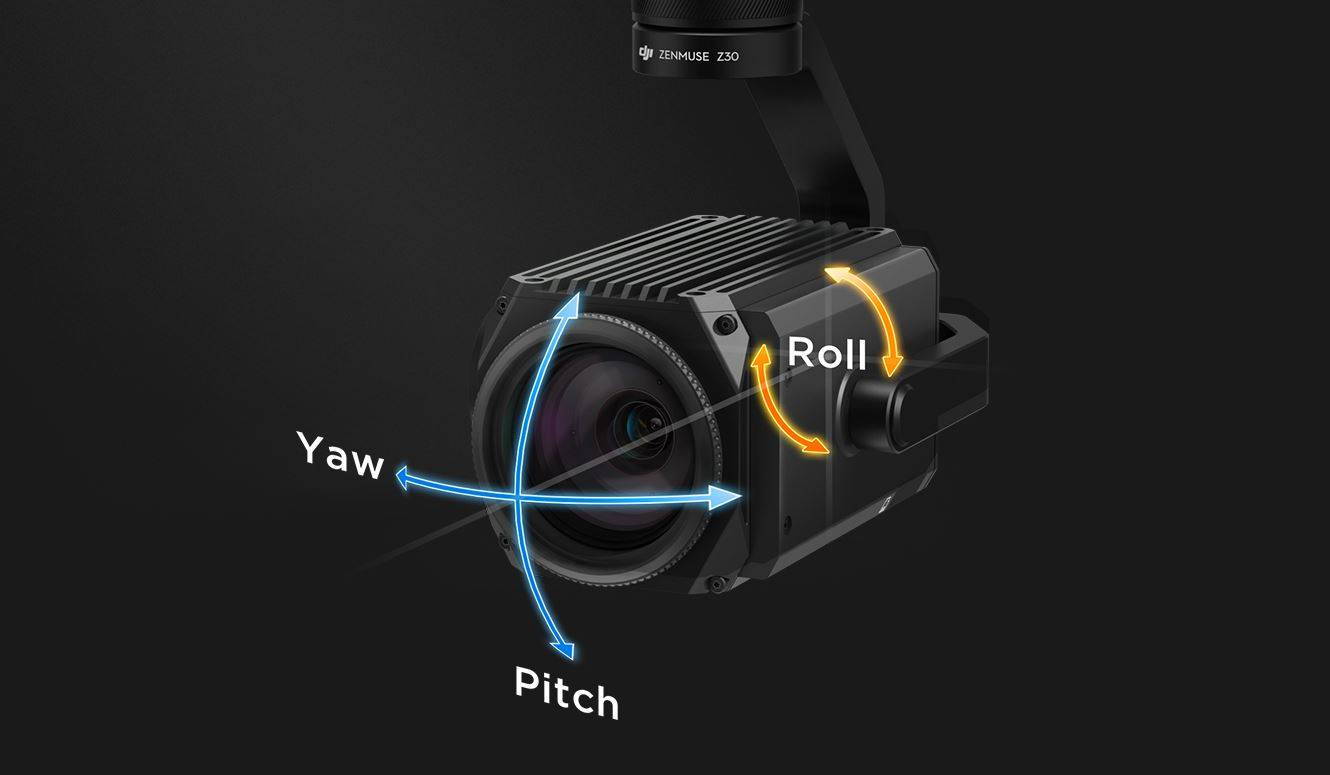

Stabilization

A high magnification zoom will cause every movement of the system to be magnified, so stabilization is really important. The Zenmuse Z30 features a stabilizer with leading DJI technology with 0.01″ accuracy and the same control accuracy. This allows for high definition in long-distance inspections.

COMPATIBLE WITH MATRIX

Adapting the Z30 to your current Matrice aerial system is easy thanks to its integrated design.

Simply slide the camera into the stand and you’re ready to take off.

The Zenmuse Z30 is designed for use with DJI Lightbridge 2, breaking technical limits by increasing the communication range to 5 km (3.1 Miles).

The integrated controller and intelligent algorithms set a new standard for wireless high-definition image issuance by reducing latency and increasing reliability.

You may also like…

Jess Gregory
Jess Gregory
2022-08-22
Excellent software for processing drone images, excellent communication, nice people! Thank you so much. Highly recommend their software!
Razib Ahmed
Razib Ahmed
2022-08-22
Great team with experienced professionals. I experienced quick response from the technical support team eventhough I was not their customer. Thank you Fede A and your team.
Esteban Laffitte
Esteban Laffitte
2021-12-19
Gran equipo de profesionales, siempre dispuestos a aclarar cualquier duda tanto en la pre como en la post-venta. Enhorabuena por el servicio qué ofreceis y la calidad de los productos que vendeis.
JOSÉ ANTONIO MARTÍNEZ SÁNCHEZ
JOSÉ ANTONIO MARTÍNEZ SÁNCHEZ
2021-12-17
He colaborado con ellos, son muy profesionales y muy recomendables.
Jose Maria Marin Poley
Jose Maria Marin Poley
2021-09-23
Hasta ahora todo correcto y rápido.
Maxi Diaz
Maxi Diaz
2021-09-15
La atención al cliente ha sido excelente. Envío a Canarias sin complicación. Recomendado.

General

Name Zenmuse Z30
Dimensions 152-137-61 mm
Weight 549g

CAMERA

Sensor CMOS, 1/2.8″

Effective Pixels: 2.13 M

Lens 30x Optical Zoom

F1.6 (Wide) – F4.7 (Tele)

Zoom Movement Speed:

– Optical Wide – Optical Tele: 4.6 sec

– Optical Wide – Digital Tele: 6.2 sec

– Digital Wide – Digital Tele: 1.8 sec

Focus Movement Time:

– near: 1.1 sec

Fov 63.7o(Wide) – 2.3o(Tele)
Digital Zoom 6x
Min. Working Distance 10 mm (Wide) – 1200 mm (Tele)
Photo Formats Jpeg
Video Formats MOV, MP4
Working Modes Capture, Record, Playback
Still Photography Modes Single shot, Burst shooting: 3/5 frames, Timelapse (2/3/4/7/10/15/20/30 sec)
Exposure Mode Auto, Manual, Shutter
Exposure Compensation •3.0 (1/3 increments)
Metering Mode Center-weighted metering, Spot metering (Area option 12×8)
AE Lock Supported
Electronic Shutter Speed 1/1 – 1/6000 s
White Balance Auto, Sunny, Cloudy, Incandescent, Custom (2000K – 10000K)
Video Captions Supported
Tap to Zoom Supported
Tap to Zoom Range Supported
Tap to Zoom Range 1-5
Defog Supported
One Key to 1x Image Supported
Anti-flicker Auto, 50 Hz, 60 Hz
PAL/NTSC Supported
Supported SD Cards MicroSD (SD / SDHC / SDXC)

Max. Capacity: 64GB, Class 10 or UHS-1

Supported File Systems FAT32 (x32 GB)

exFAT (32 GB)

GIMBAL

Angular Vibration Range .01
Mount Detachable
Controllable Range Tilt: +30 to -90o, Bread: .320
Mechanical Range Tilt: +50o to -140o, Bread: 330o, Roll: +90o to -50o
Max Controllable Speed Tilt: 120o/s, Bread: 180o/s

ENVIRONMENTAL

Operating Temperature 14o to 113o F (-10o to 45o C)
Non-Operating Temperature -4o to 140o F (-20o to 60o C)
